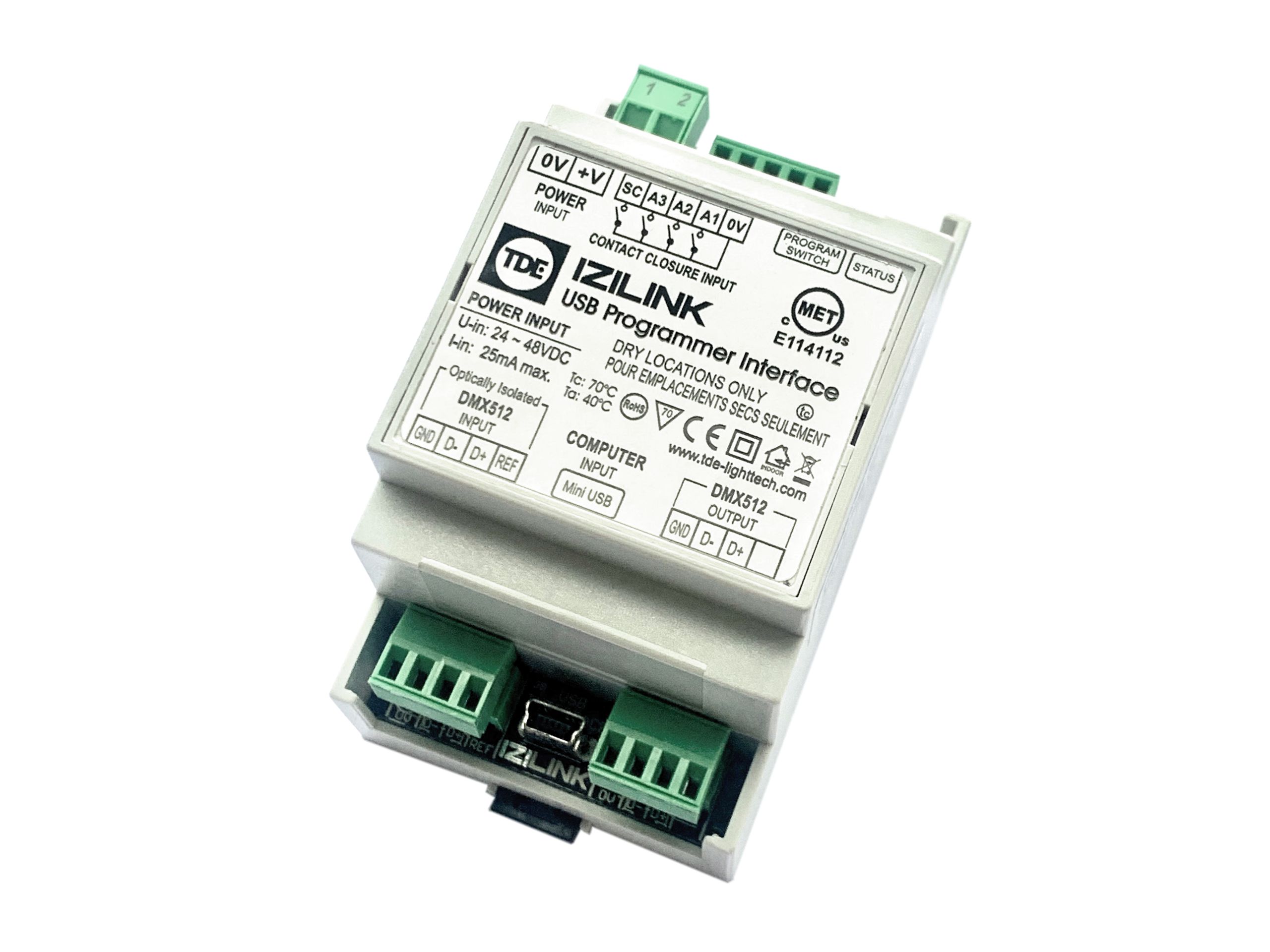

IZI-Link USB Programmer Interface

The IZI-Link USB Programmer Interface is a multifunctional DIN-rail module with which an IZI-Link system can be commissioned.
The interface is equipped with a USB connection so that it can easily be connected to a Windows PC.
With the special commissioning tool IZI-Manager, an IZI-Link system can be configured easily and remotely.
The IZI-Link USB interface offers configurable functionality such as programmable DMX-512 Fail and various Dry-contact inputs modes.



  • IZI-Link USB commissioning tool
  • Remote configuration with IZI-Manager
  • Programmable Dry-contact inputs
  • Programmable DMX-Fail modes

Technical specifications


Input voltage24~48VDC
Input current150mA max.
Maximum power consumption3.6 Watt


Control input1 x DMX-512 galvanically isolated
Control output1 x DMX-512
Windows PC connectionUSB Connector
Dry contact inputs4 galvanically islolated


HousingABS DIN-Rail (3 module width)
Power input connector2-pole screw terminal, 2.5mm² max
DMX In- & output connector4 pole terminal block, 1.5mm² max
Dry contact inputs connector5 pole terminal block, 1.5mm² max
