Moodspot+LP series

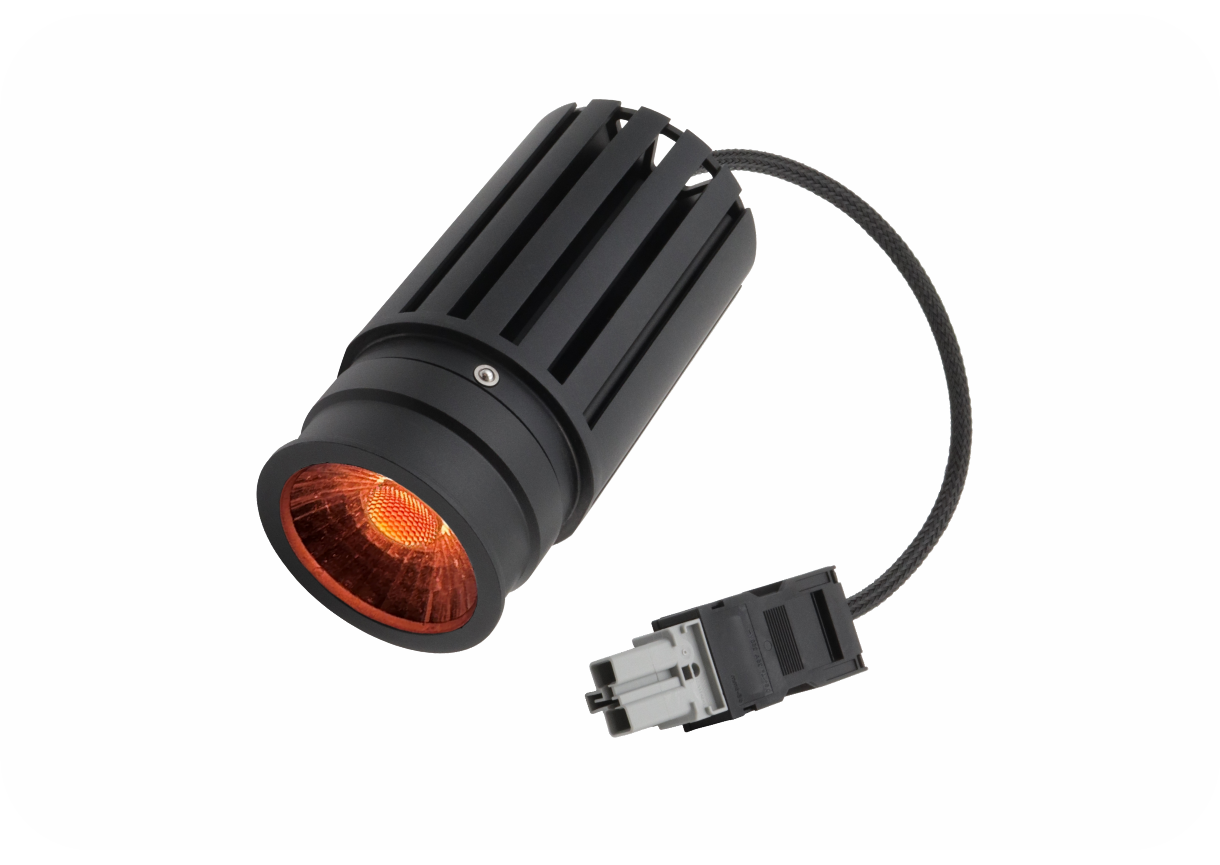

Moodspot+LP – One Fixture, Every Mood

Meet the Moodspot+LP: a new generation downlight that brings unmatched flexibility to architectural and entertainment lighting. Where most luminaires come in separate versions, the Moodspot+LP combines Warm Dimming, Tunable White, and full RGBW color control into a single, powerful fixture—without compromise.

Designed for theatres, auditoriums, and premium house lighting, the Moodspot+LP delivers a high-quality light output with an exceptionally high CRI. Its advanced Warm Dimming and CCT tuning follow the Black Body Locus, smoothly ranging from 6500K down to a candle-like 1400K, and dimming completely flicker-free to 0.0%. When creative freedom is required, the full RGBW engine opens the door to rich colors and subtle accents.

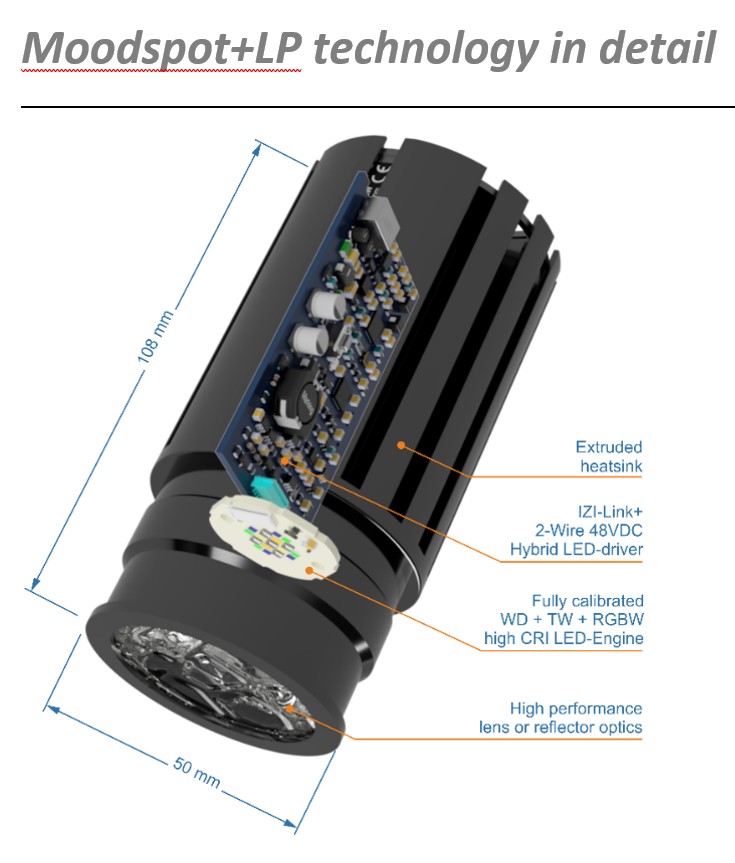

Powered by the internal IZI-Link+ hybrid LED driver, the Moodspot+LP uses reliable two-wire powerline communication and is fully HD camera-proof. Seamless switching between Warm Dimming, Advanced Tunable White, and RGBW modes makes this fixture truly versatile—one solution for every atmosphere, every application.

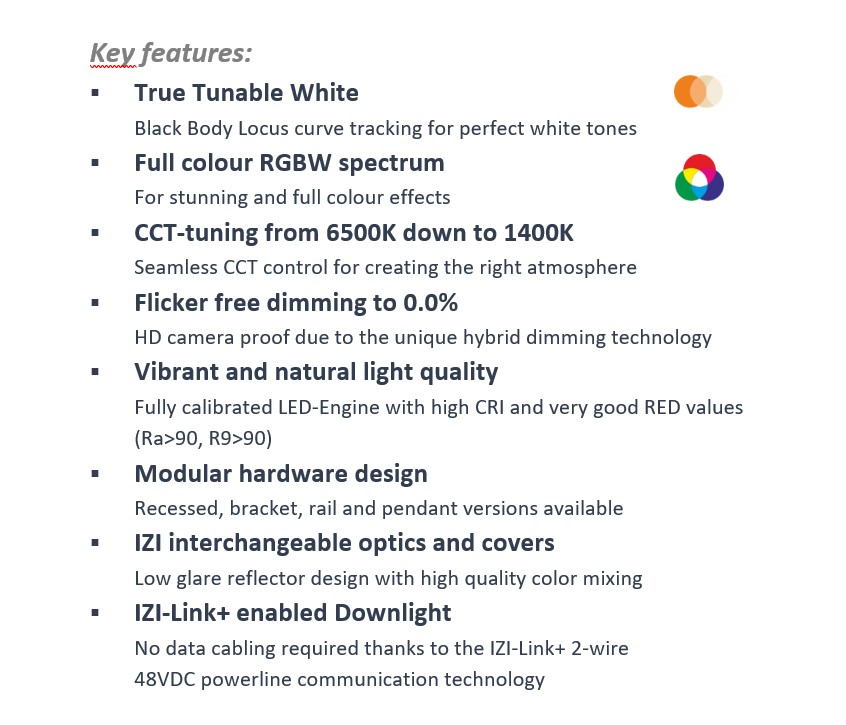

Features

  • Next-Generation IZI-Link+ Downlight
  • Advance Tunable White & Warm-dimming

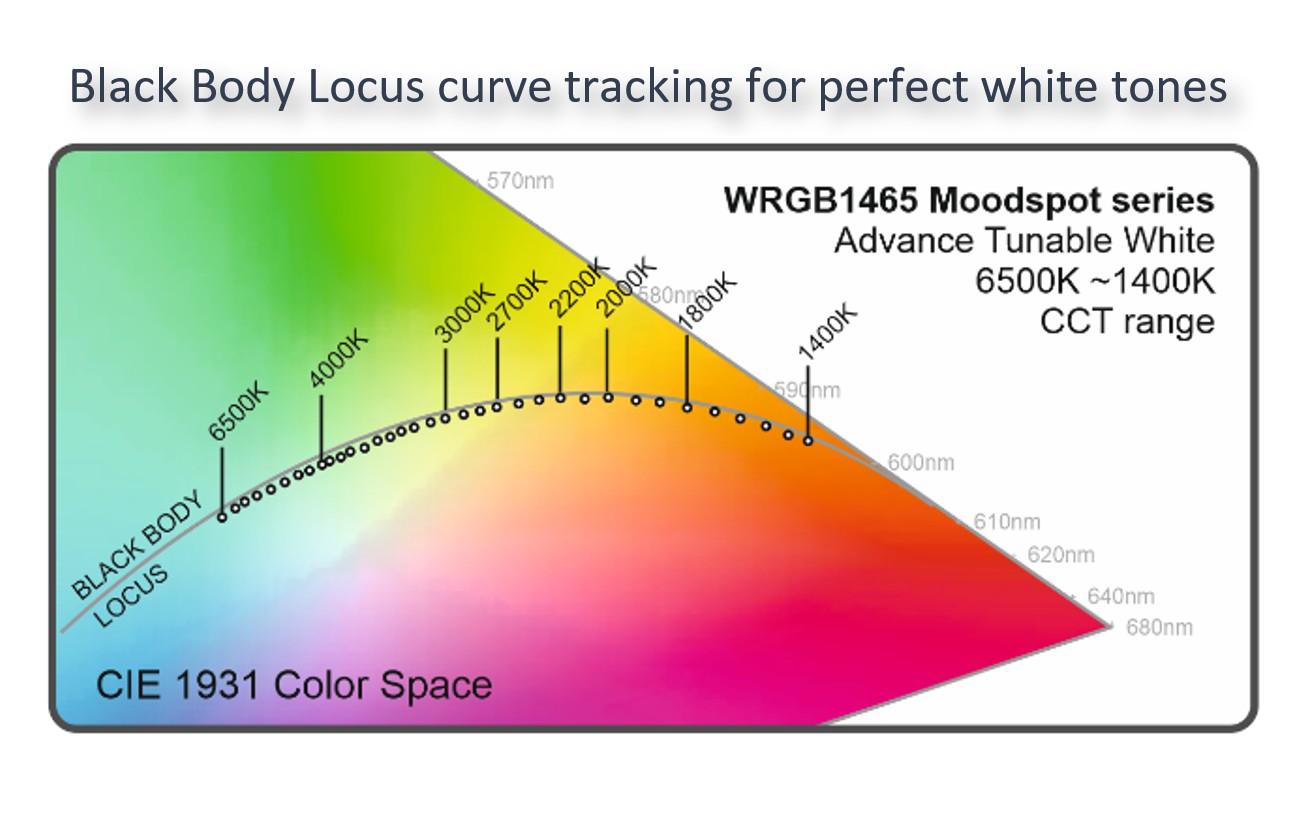

  • Pure White tracking the Black Body Locus
  • Smooth and flcker-free dimming to 0.0%
  • 48VDC IZI-Link+ PowerLine Communication
  • HD Camera proof

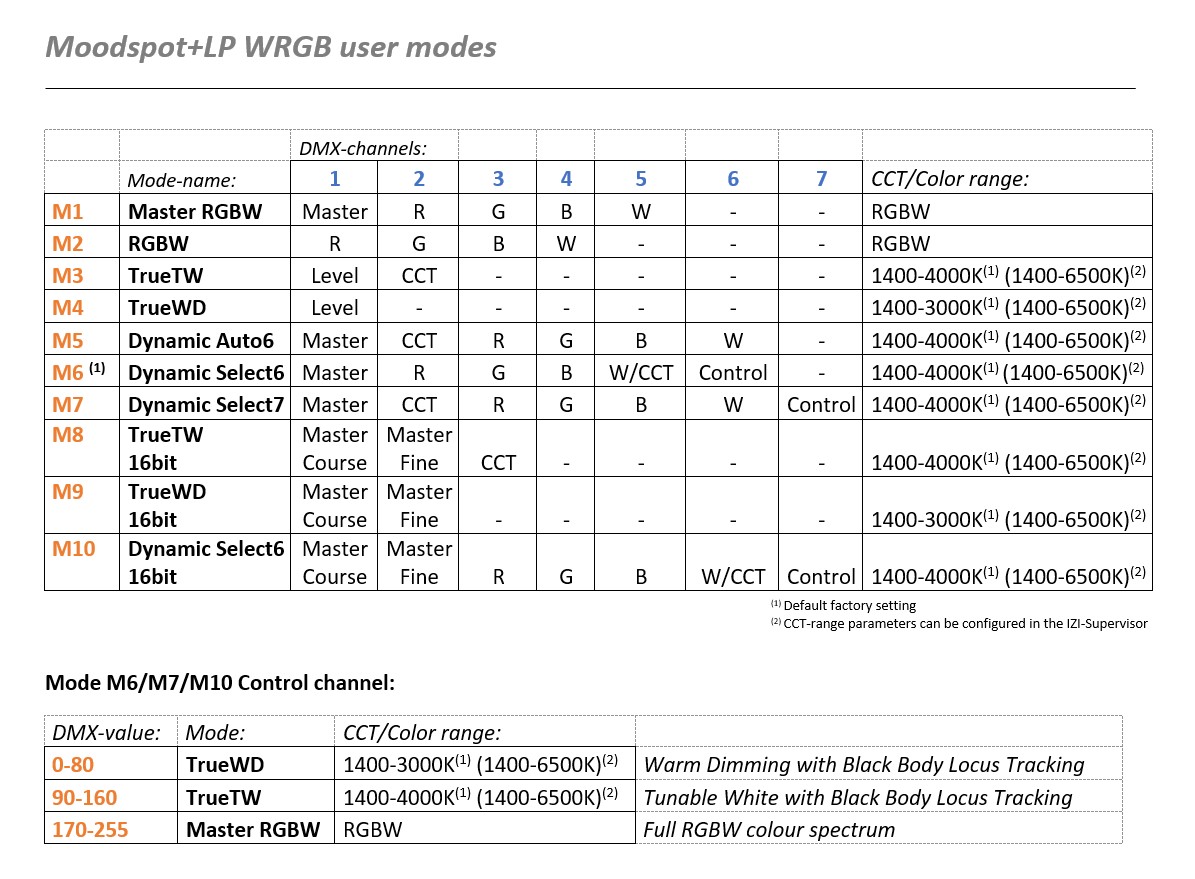

  • 16 + 8bit TW / WD and WRGB modes

Technical specifications

LED

Colour temperature1400K-6500K / CCT-Tuning mode
RGBW Colours mixRGBW tuning mode
Lumen output1000lm LED-engine - 800 lumen @ 3000K (with 24° optic)
Colour renderingRa > 90 / R9 > 80 (CCT @ 3000K)
Colour variation3 MacAdam Elipse

Power

Power supply48VDC IZI-Link+ system
Current300mA
Power consumption12W maximum

Control

Control systemIZI-Link+ system (48V PowerLine Communiucation System
Hybrid dimming technologyFlicker-free and HD Camera proof
PMW-frequency24kHz Dynamic
ControlArt-Net / sACN / DMX + RDM / OSC via IZI-Link+ system

Material

Beam-angle15° / 24° / 36° / 60°
Weight240 gram
IP-RatingIP20
ConnectionWAGO 770-252 / Winsta MIDI / 2-pole

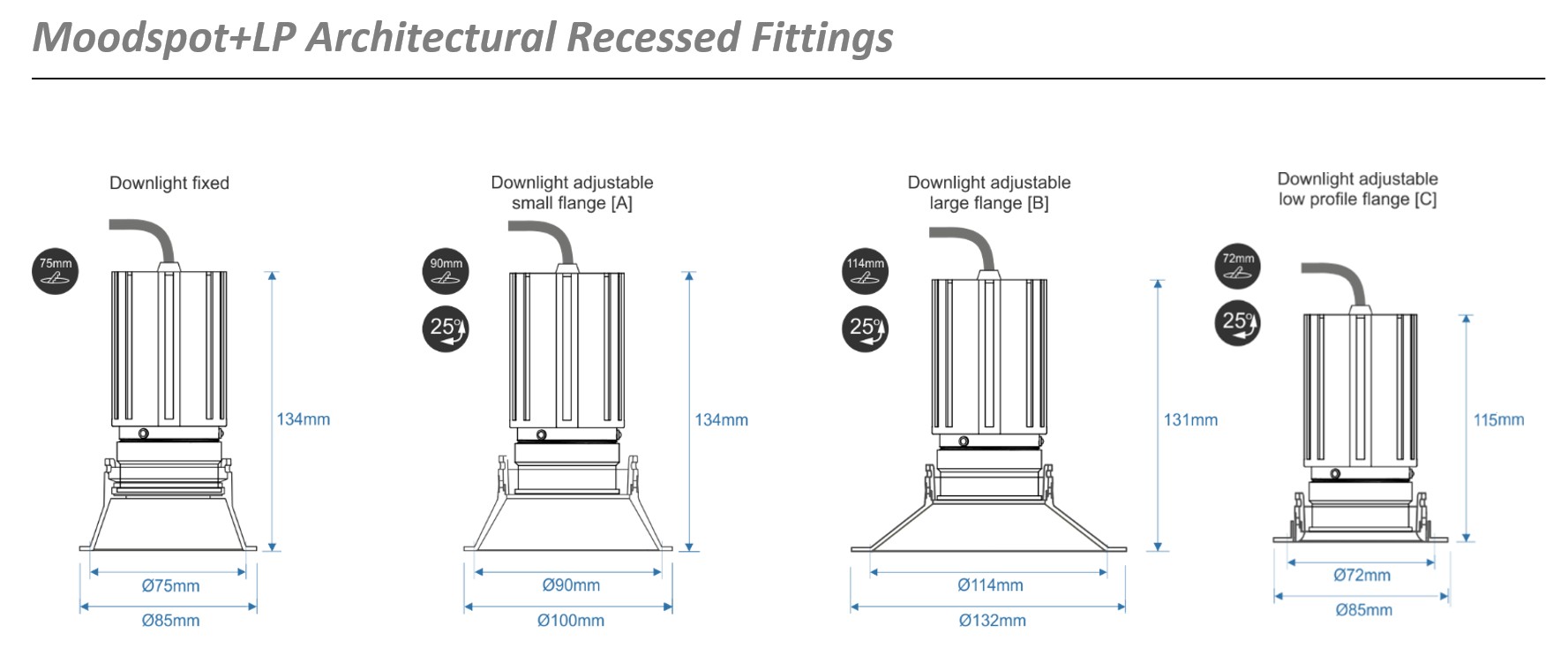

HousingLED-module 50mm fitting
ColoursBlack (Other colours optional)
MaterialAluminium + PMMA (lens)
AccessoiresUnder development
