The IZI-Link(+) system is designed to simplify the installation and operation of LED lighting.
With the IZI-Link(+) system, separate data cabling (DMX, DALI, Art-Net or sACN) to the fixtures is no longer necessary, which simplifies the installation and makes it less susceptible to interference.
Another major advantage is that (existing) electrical wiring can be (re)used, which makes upgrading old installations to LED simple and cost-saving because no new cabling needs to be installed.

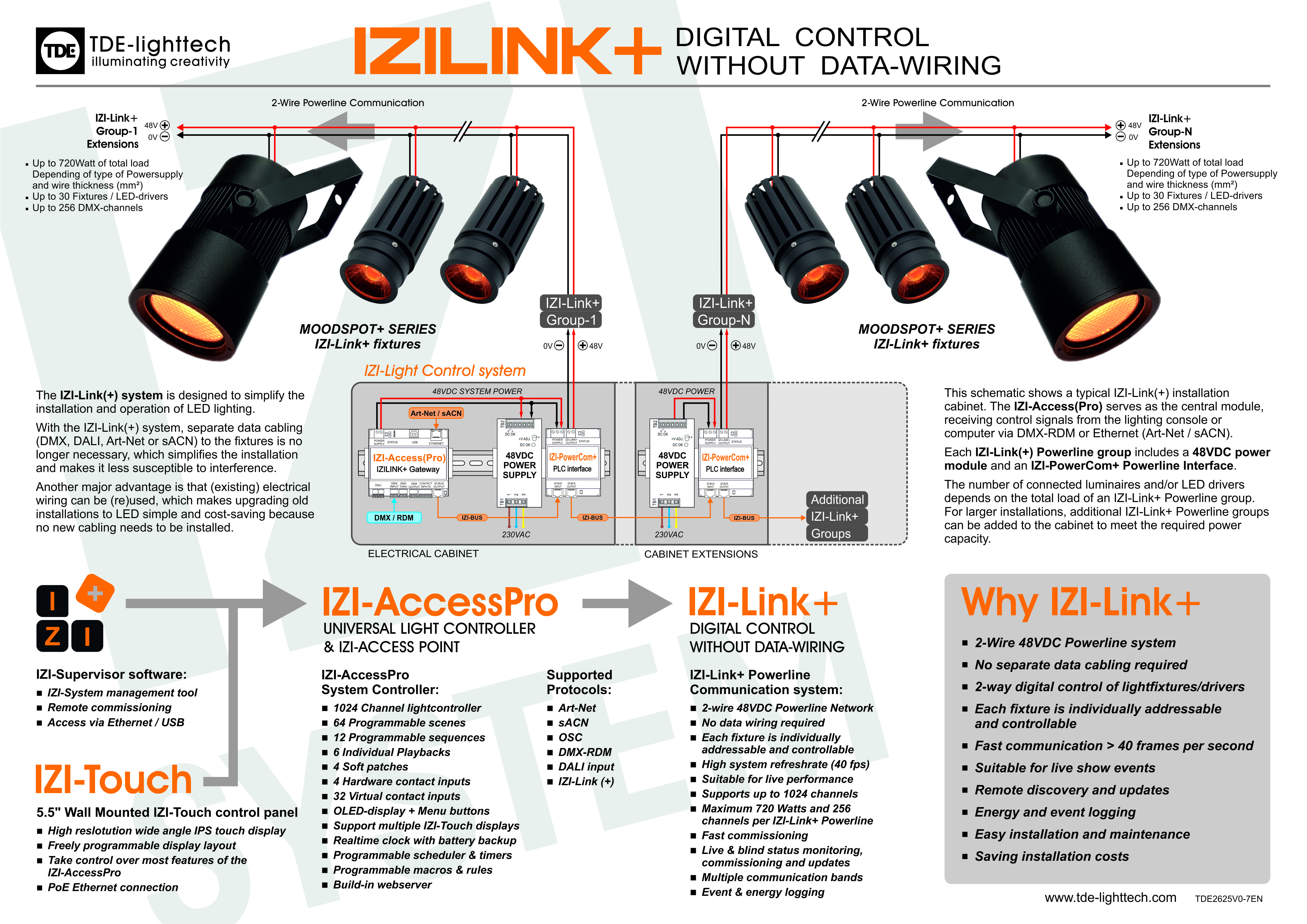

The schematic shows a typical IZI-Link(+) installation cabinet. The IZI-Access(Pro) serves as the central module, receiving control signals from the lighting console or computer via DMX-RDM or Ethernet (Art-Net / sACN).
Each IZI-Link(+) Powerline group includes a 48VDC power module and an IZI-PowerCom+ Powerline Interface.
The number of connected luminaires and/or LED drivers depends on the total load of an IZI-Link+ Powerline group.
For larger installations, additional IZI-Link+ Powerline groups can be added to the cabinet to meet the required power capacity.
