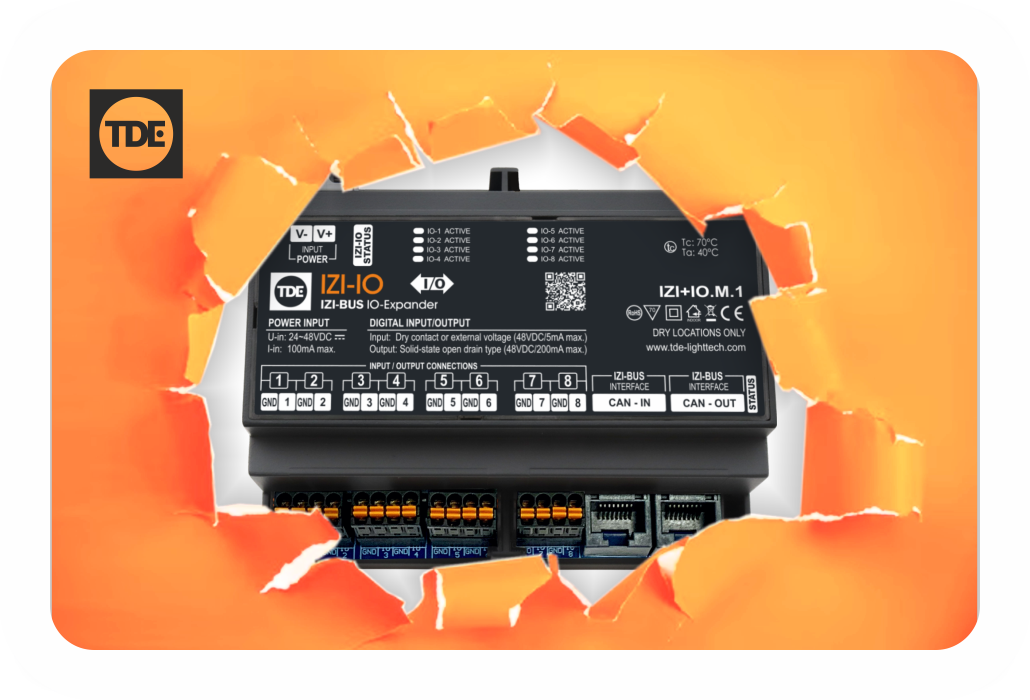

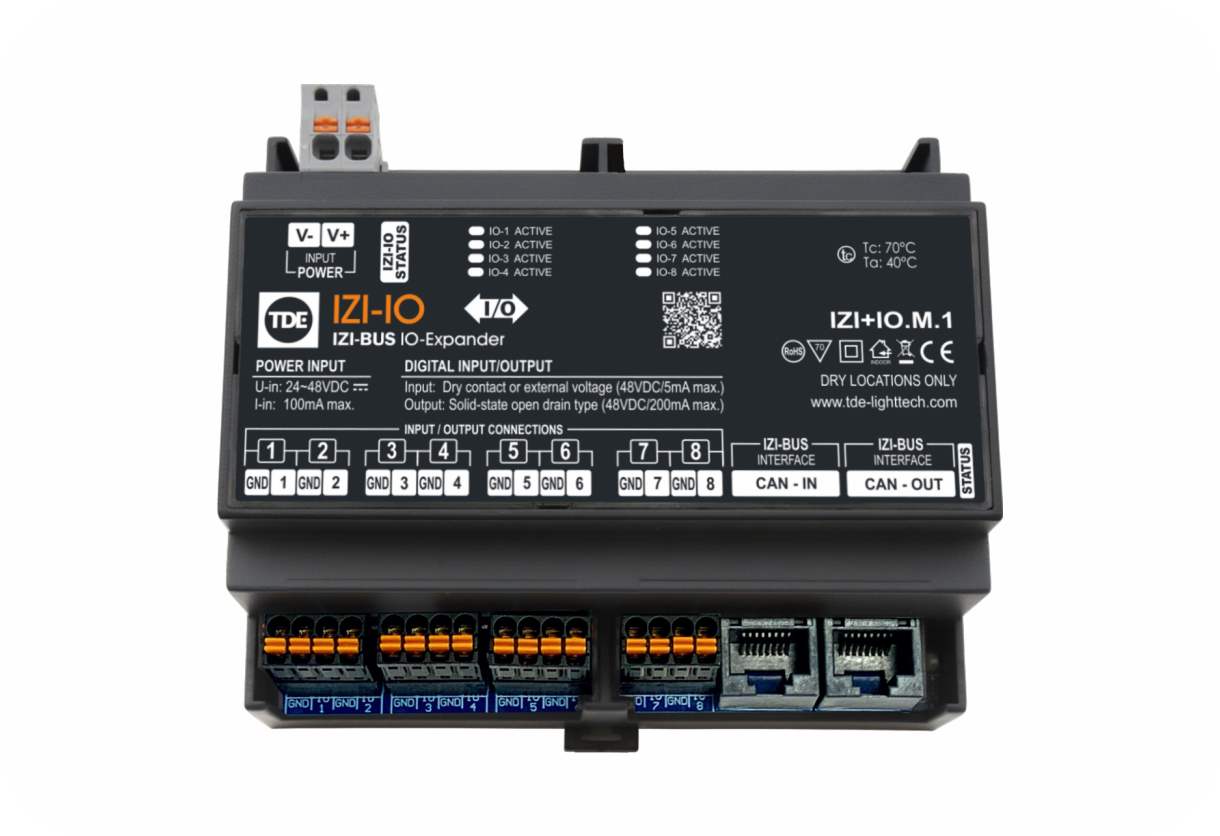

IZI-IO

IZI-IO – Expand Your Control, Unlock New Possibilities

The IZI-IO is the perfect expansion module for the IZI-Access. When the four inputs of the IZI-Access aren’t enough, this versatile add-on steps in.
It features eight ports that can each be configured as either an input or an output, giving you total flexibility in any installation.

Outputs can be driven by scenes or macros created within the IZI-Access(Pro), while inputs can trigger virtual inputs inside the system, each one ready to launch any action you choose.
With the IZI-IO, your setup becomes smarter, broader, and far more capable.

Features

  • Expand Your Control options
  • 8 Programmable digital I/O ports

Technical specifications

Power

Power24V ~ 48VDC
Current100mA maximum
Power consumption2.4 Watt maximum

Control

Control Input & OutputIZI-Bus CAN-injterface (High Speed)
Control protocols (via IZI-Access(Pro)IZI-Link & IZI-Link+

Material

HousingDIN-rail (6 module width)
MaterialDesktop ABS plastic
Housing colourDark grey (RAL7016) Housing
IP ClassIP20
Power input2-pole WAGO 2231-102
I/O input (2x)4-pole WAGO 714-104
DataRJ45 IZI-Bus (High speed CAN)
